Product Description
Distillation plant aids in purifying a liquid by a process of heating and cooling and repeating it if needed until the extraction of the desired product is not achieved.
Our Engineers, Designers and Experts have an enormous and meticulous understanding of today’s market Need, Standards and requirements that is why, when it comes to a product that requires a high level of resistance to corrosion, high pressure and purity. Ablaze Export Pvt. Ltd.is the name our clients all around the globe have always kept their trust and faith in.
Salient Features
- Suitable for operation under high vacuum and low pressure.
- Setup can be configured up to 600 DN for large size reactors.
- Visual monitoring of the process, improving safety and reliability of production.
- Customized compact design as per available space.
- Measure and control devices can be easily equipped.
- High corrosion resistant Coupling and Fasteners.
- Shell and Tube type Heat Exchanger available up to 40m2 for improved heat transfer efficiency.
Dimension Table
| DESCRIPTION | AGR/GL 1000 | AGR/GL 1600 | AGR/GL 3000 | AGR/GL 5000 | |
|---|---|---|---|---|---|
| Reactor Nominal Capacity | ltr. | 1000 | 1600 | 3000 | 5000 |
| Heat Exchanger (Exchange Surface) | m2 | 8.0 | 12.5 | 16.0 | 26.0 |
| After Cooler (Exchange Surface) | m2 | 2.0 | 2.5 | 4.0 | 5.0 |
| Jacket Design Pressure | bar(g) | -1 to +6 | -1 to +6 | -1 to +6 | -1 to +6 |
| Vessel Design Pressure | bar(g) | -1 to +1 | -1 to +1 | -1 to +1 | -1 to +1 |
| Plant Working Temperature | ºC | -20 to +180 | -20 to +180 | -20 to +180 | -20 to +180 |
| Plant Design Temperature | ºC | -25 to +200 | -25 to +200 | -25 to +200 | -25 to +200 |
| Plant Working Pressure | bar(g) | +0.5 | +0.5 | +0.5 | +0.5 |
| Feed Vessel | No. x ltr. | 2 × 100 | 1 × 200 | 2 × 200 | 2 × 200 |
| Receiver Vessel | No. x ltr. | 2 × 100 | 2 × 200 | 2 × 200 | 2 × 200 |
| Vapour Line Column | DN | 150 | 225 | 300 | 300 |
| Rupture Disc | bar(g) | 0.5 | 0.5 | 0.5 | 0.5 |
Ablaze Export Pvt. Ltd. is one of the leading Manufacturer, Supplier and Exporter in India for Distillation plants with Glass Lined Reactor all over the Globe. It is because of the precision, expertise and use of incipient technology that our Manufactured Distillation Plant with Glass Lined Reactor are always sought after for the highest and most accurate production.
The Material of Construction is the most indispensable determinant in the making of Distillation plant with Glass Lined Reactor and its equipment which are required in the formulation of new products in the Pharmaceuticals Industry.
We Manufacture our Distillation plant with Glass Lined Reactor from the supreme quality of raw materials which undergo very rigorous testing before getting selected. Our raw material is procured from the acme and finest vendors of high repute. MOC decides the quality, precision, coherence, and durability of the Distillation plant with Glass Lined Reactor, its equipment and its role in the process it is going to be used.
Our Manufactured Distillation plant with Glass Lined Reactor delivers best performance, dimensional accuracy and durability for the required process. In the process where the steam of relatively high pressure is needed to be used as a heating source, Glass lining Reactors are used instead of Glass Reactors.
The glass-lined reactor is used instead of glass reactors, but it is made of glass assembly only with the remaining mounting on top of the glass-lined reactor. The GLR’s (Glass Lined Reactors) normal overhead glass assemblies are intended for reflux and distillation responses.
We Manufacture our Distillation plant with Glass Lined Reactor from the supreme quality of raw materials which undergo very rigorous testing before getting selected. Our raw material is procured from the acme and finest vendors of high repute. MOC decides the quality, precision, coherence, and durability of the Distillation plant with Glass Lined Reactor, its equipment and its role in the process it is going to be used.
Our Manufactured Distillation plant with Glass Lined Reactor delivers best performance, dimensional accuracy and durability for the required process. In the process where the steam of relatively high pressure is needed to be used as a heating source, Glass lining Reactors are used instead of Glass Reactors.
The glass-lined reactor is used instead of glass reactors, but it is made of glass assembly only with the remaining mounting on top of the glass-lined reactor. The GLR’s (Glass Lined Reactors) normal overhead glass assemblies are intended for reflux and distillation responses.

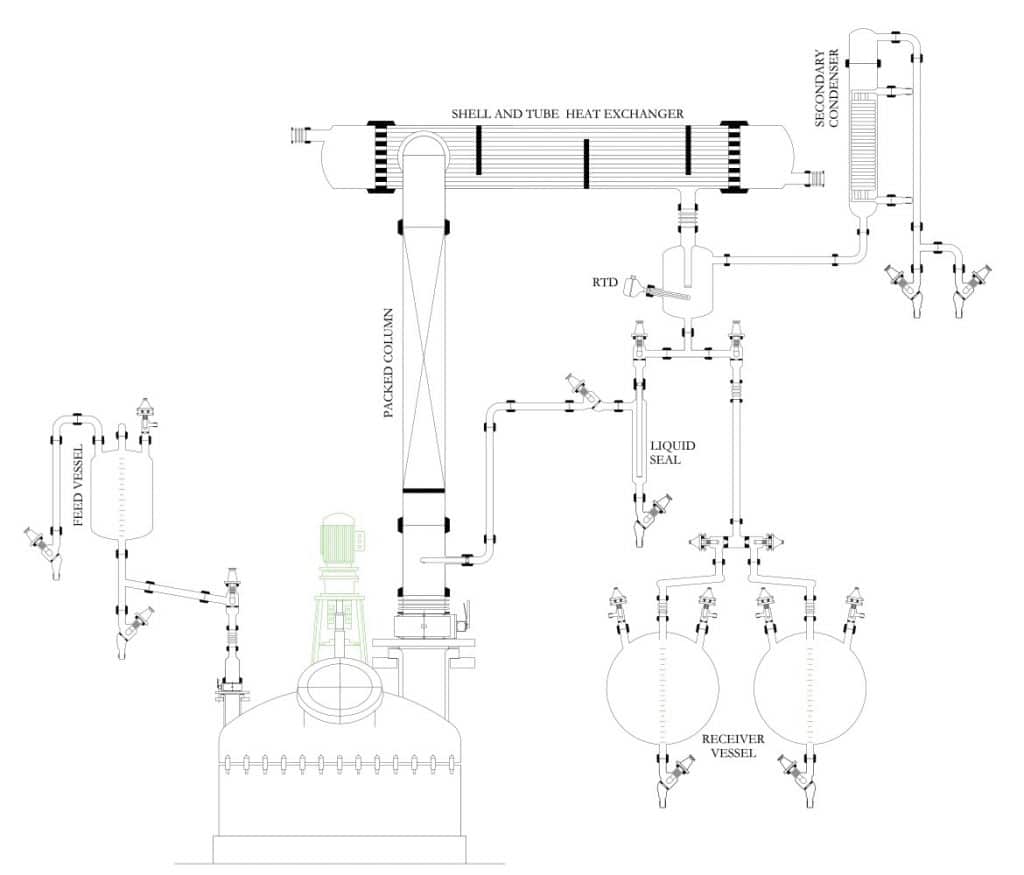

The process equipment standards are as follows
- Controlled liquid reactants spherical or cylindrical graduated vessels of feeds
- Primary Condenser – Heat exchanger for type coil or heat exchanger for type shell & tube
- Multi-component distillation or azeotropic distillation phase separators
- Distillate receivers for constant without breaking vacuum operation
- Pressure Equalization ensures full hydraulic integrity and vacuum implementation through the whole scheme through process pipeline design
- Column of vapor available with different packing or hollow composition
- DIN Standard AE and CE type Glass Lined Reactor
